What is a Workload Manager

• Commonly called a Workload Manager. May also be referred to (sometimes loosely) as:

  • Batch system
  • Batch scheduler
  • Workload scheduler
  • Job scheduler
  • Resource manager (usually considered a component of a Workload Manager)

• Tasks commonly performed by a Workload Manager:

  • Provide a means for users to specify and submit work as "jobs"
  • Evaluate, prioritize, schedule and run jobs
  • Provide a means for users to monitor, modify and interact with jobs
  • Manage, allocate and provide access to available machine resources
  • Manage pending work in job queues
  • Monitor and troubleshoot jobs and machine resources
  • Provide accounting and reporting facilities for jobs and machine resources
  • Efficiently balance work over machine resources; minimize wasted resources

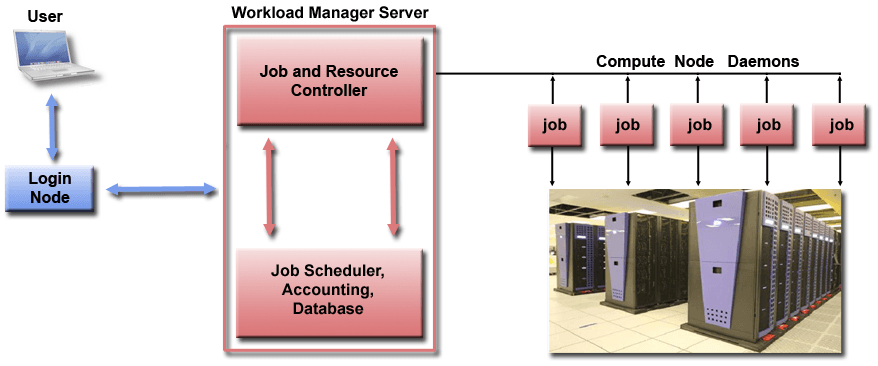

• Generalized architecture and workflow of a Workload Manager:

User

• Logs into cluster
• Creates job script and submits it to workload manager
• Monitors and interacts with job via workload manager
• Queries workload manager for job and cluster information

Workload Manager

• Typically runs on a separate server as multiple processes
• Receives job submissions, commands, queries from user
• Matches job requirements to available machine resources
• Evaluates, prioritizes and queues jobs
• Schedules jobs for execution on cluster
• Tracks job and cluster information
• Sends jobs to compute node daemons for actual execution

Cluster

• Workload Manager daemons run on compute nodes
• Daemons manage compute resources and job execution
• Daemons communicate with Workload Manager server processes

• Some popular Workload Managers include:

• Slurm from SchedMD
• Spectrum LSF from IBM
• Tivoli Workload Scheduler (LoadLeveler) from IBM
• PBS from Altair Engineering
• TORQUE, Maui, Moab from Adaptive Computing
• Univa Grid Engine
• OpenLava
